DAD 4941 Downdraft extractor
Downdraft extractor system in an elegant Obsidian Black design and with intuitive SmartControl operation
- 936 mm wide – a href="#img_200237632"the perfect combination with induction cooktops /a
- Easy recirculation mode installation with plug&play accessory set
- Motorised retractable deflector plate – Hood in Motion
- Unique user convenience – Con@ctivity
- Efficient filtration – 10-layer stainless-steel grease filter
- 936 mm wide – a href="#img_200237632"the perfect combination with induction cooktops /a
- Easy recirculation mode installation with plug&play accessory set
- Motorised retractable deflector plate – Hood in Motion
- Unique user convenience – Con@ctivity
- Efficient filtration – 10-layer stainless-steel grease filter
- Dual-action blower
- Fan power (m³/h)
- 855
- Downdraft extractor
- Type of air guide
- Can be retrofitted
- Recirculation conversion kit (order separately)
- DUP 150,DUU 600
- Active charcoal filter (order separately)
- DKF 30-P, DKF 30-R
- Colour
- Obsidian black
- Edge extraction
- Miele@home
- Automatic function Con@ctivity
- Electronic controls
- Touch-on-glass controls
- Power levels (number without Booster level)
- 3
- Booster settings
- 2
- Grease filter saturation indicator
- Active charcoal filter saturation indicator
- Motor-operated rangehoods
- Controls
- SmartControl
- Canopy width in in. (mm)
- 936
- Depth of hood canopy in in. (mm)
- 170
- Net weight in kg
- 34
- Length of supply lead in m
- 1.5
- Standard plug fitted
- Total rated load in kW
- 0.251
- Voltage in V
- 230
- Fuse rating in A
- 10
- Frequency in Hz
- 50
- Number of phases
- 1
- Air throughput in Level 1 (m³/h) according to EN 61591
- 200
- Air throughput in Level 2 (m³/h) according to EN 61591
- 340
- Air throughput in Level 3 (m³/h) according to EN 61591
- 440
- Air throughput with Booster setting 1 (m³/h) according to EN 61591
- 600
- Air throughput with Booster setting 2 (m³/h) according to EN 61591
- 640
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
- 44
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
- 57
- Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3
- 62
- Sound power with Booster setting 1 (dB(A) re 1 pW) acc. to EN 60704-3
- 70
- Sound power with Booster setting 2 (dB(A) re 1 pW) acc. to EN 60704-3
- 72
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
- 30
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
- 43
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
- 49
- Sound pressure with Booster setting 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
- 56
- Sound pressure with Booster setting 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13
- 58
- Diameter of extraction ducting connection in mm
- 150
- Optimum combination with cooktop subject to availability
- KM 7697 FL; KM 7594 FL
- Bottom exhaust connection
- Air throughput in Level 1 (m³/h) according to EN 61591
- 160
- Air throughput in Level 2 (m³/h) according to EN 61591
- 320
- Air throughput in Level 3 (m³/h) according to EN 61591
- 415
- Air throughput with Booster setting 1 (m³/h) according to EN 61591
- 520
- Air throughput with Booster setting 2 (m³/h) according to EN 61591
- 555
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
- 50
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
- 64
- Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3
- 69
- Sound power with Booster setting 1 (dB(A) re 1 pW) acc. to EN 60704-3
- 75
- Sound power with Booster setting 2 (dB(A) re 1 pW) acc. to EN 60704-3
- 76
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
- 37
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
- 50
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
- 56
- Sound pressure with Booster setting 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
- 61
- Sound pressure with Booster setting 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13
- 62
- Number of dishwasher-safe stainless steel grease filters (10-ply)
- 2
- Number x W
- 1 x 11,2 W
- Light intensity in Lx
- 400 lx
- Colour temperature in K
- 3500 Kelvin
- Dimmer function
- Safety shut-off
- Single-ply safety glass (ESG)

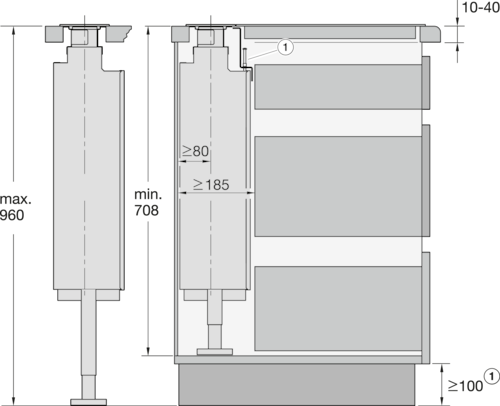

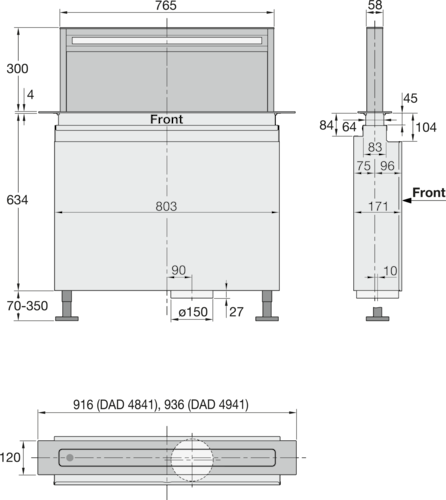

DAD4841, DAD4941, flush, Installation drawings

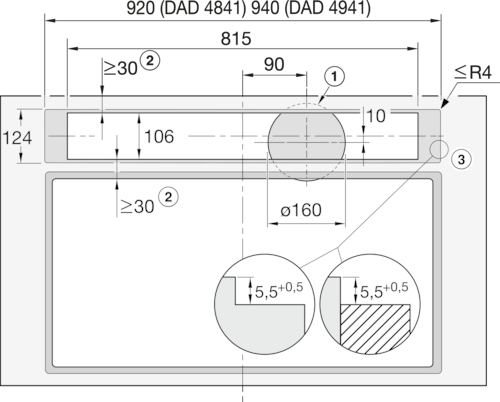

Installation of the downdraft hood and cooktop in separate cutouts., Flush installation., 1) Cut-out for exhaust air duct in the cabinet base., 2) Ensure sufficient stability of the worktop., 3) Step milling for flush mounting in a countertop. Note the, the different milling widths for the hob and the downdraft. Instead of a step milling, a wooden strip offset 5.5 mm downwards can be installed as an alternative (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.

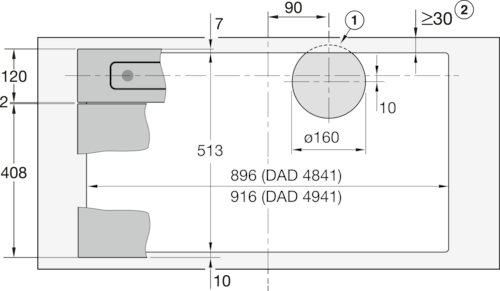

DAD4841, DAD4941, surface mounted installation, common cutout, Installation drawings

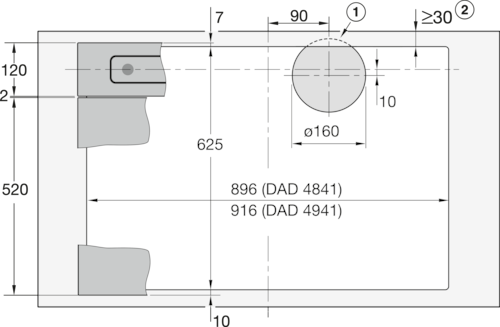

Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7697 FL or KM 7594 FL., Surface-mounted installation, 1) Cut-out for exhaust air line in cabinet base., 2) Ensure sufficient stability of the worktop., , Exhaust air connection ø150 mm.

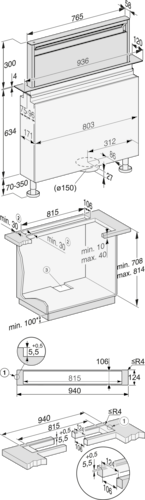

DAD4841, DAD4941, Installation drawings
① The minimum dimension is required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used.

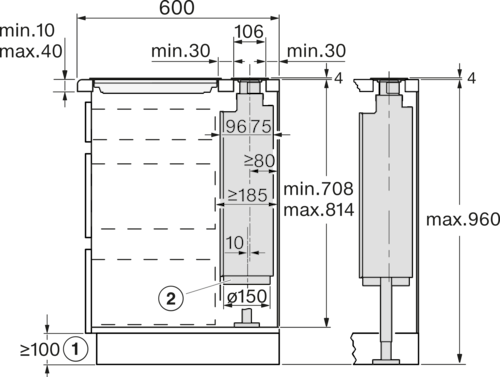

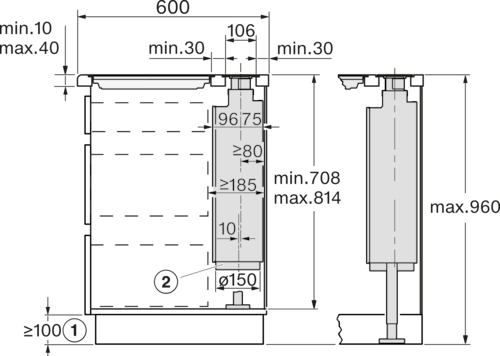

DAD4841, DAD4941, overlying, Installation drawings
Installation of the downdraft hood and cooktop in separate cutouts., Surface-mounted installation, 1) Cutout for exhaust air line in cabinet base., 2) Ensure sufficient stability of the worktop., Exhaust air connection ø150 mm
DAD4941, Installation drawings
1. Stepped cutout for flush-fit installation in stone worktops (granite, marble)., 2. Ensure that materials are sufficiently stable., 3. Cut-out off-centre., Exhaust duct Ø 150 mm., * Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used.
DAD4840, DAD4940, DAD4841, DAD4941 - surface mounted, AP
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres.

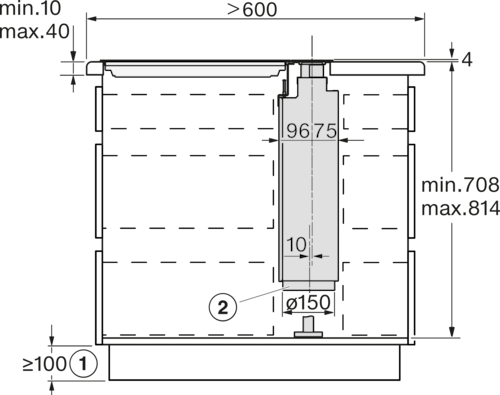

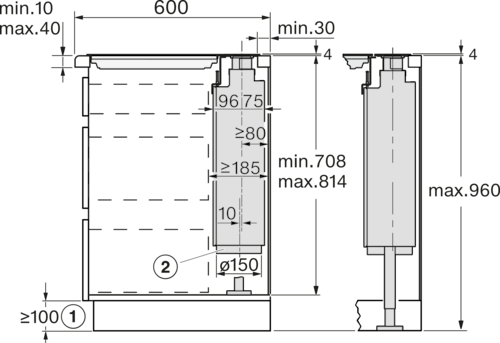

DAD4840, DAD4940, DAD4841, DAD4941 - flush - side view - Installation drawings
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres.
DAD4840, DAD4940, DAD4841, DAD4941 - flush - side view - Installation drawings
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres.
DAD4841, DAD4941, overlying - AP600 mm, common cutout, Installation drawings
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.
DAD4841, DAD4941, flush - AP600 mm, common cutout, Installation drawings
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.

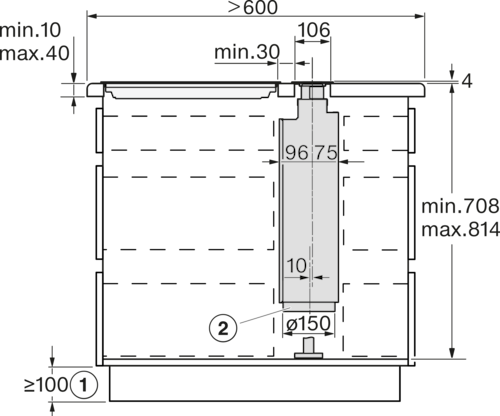

DAD4841, DAD4941, overlying - AP600 mm, Side view, Installation drawings
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.
DAD4841, DAD4941, flush - AP600 mm, Side view, Installation drawings
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.
DAD4841, DAD4941, surface mounted installation, common cutout, Installation drawings
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7684 FL or KM 7689 FL., Surface mounted installation, 1) Cut-out for exhaust air line in cabinet base., 2) Ensure sufficient stability of the worktop., , Exhaust air connection ø150 mm.

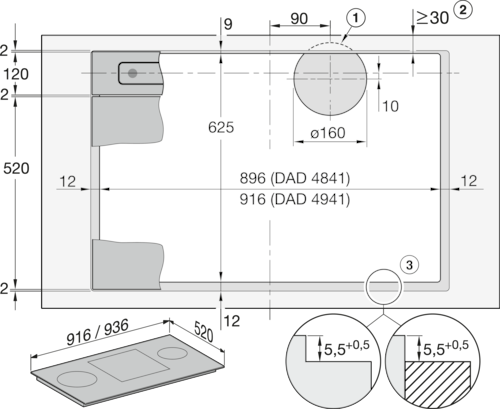

DAD4841, DAD4941, flush, Installation drawings

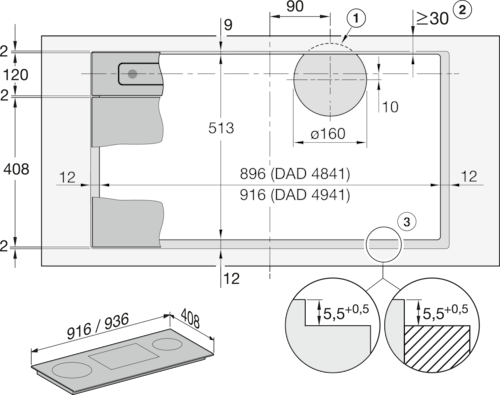

Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7697 FL or KM 7594 FL., Flush installation, 1) Cut-out for exhaust air duct in the cabinet base., 2) Ensure sufficient stability of the worktop., 3) Step milling for flush mounting in a worktop. Note the, the different milling widths for the hob and the downdraft. , Instead of a step milling, a 5.5 mm downwardly offset wooden strip can be installed (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.
DAD4841, DAD4941, flush, Installation drawings
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7697 FL or KM 7594 FL., Flush installation, 1) Cut-out for exhaust air duct in the cabinet base., 2) Ensure sufficient stability of the worktop., 3) Step milling for flush mounting in a worktop. Note the, the different milling widths for the hob and the downdraft. , Instead of a step milling, a 5.5 mm downwardly offset wooden strip can be installed (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.
