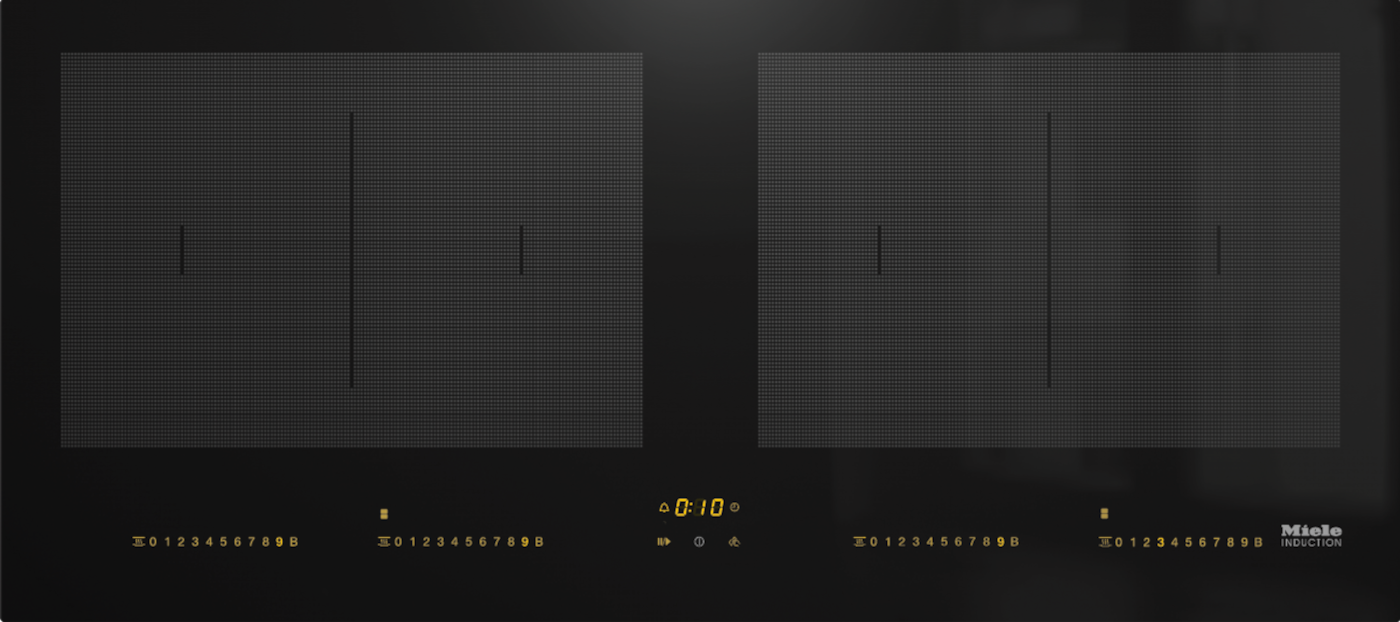

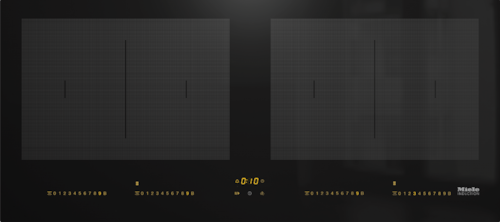

KM 7684 FL Induction cooktop
Induction cooktop with onset controls panorama design with two PowerFlex cooking areas for extra convenience.
- Intuitive and quick selection via number sequences – Smart Select
- 4 cooking zones incl. 2 high-power PowerFlex cooking areas
- A width of 916 mm for surface-mounted or flush-fit installation
- Shortest heating-up times – TwinBooster
- Communication with the rangehood – automatic Con@ctivity function
Active Promotions
Description
11230310
- Intuitive and quick selection via number sequences – Smart Select
- 4 cooking zones incl. 2 high-power PowerFlex cooking areas
- A width of 916 mm for surface-mounted or flush-fit installation
- Shortest heating-up times – TwinBooster
- Communication with the rangehood – automatic Con@ctivity function
Benefits
![For greater safety and security](https://media.miele.com/images/2000015/200001559/20000155910.png?imwidth=442&impolicy=z-derivate)
Safety functions
For greater safety and security
The safety functions prevent any unpleasant surprises – even if your mind is on other things.
![Easy operation with SmartSelect](https://media.miele.com/images/2000015/200001574/20000157409.png?imwidth=442&impolicy=z-derivate)

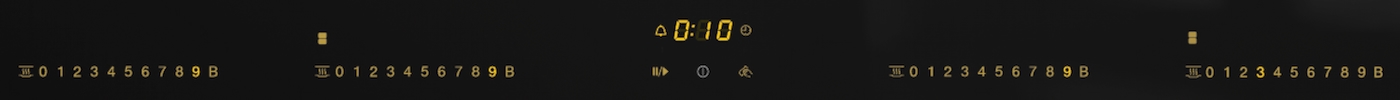

SmartSelect
Easy operation with SmartSelect
Quick and intuitive: power levels and times can be selected directly for each cooking zone.
![Booster function for rapid heating](https://media.miele.com/images/2000015/200001559/20000155909.png?imwidth=442&impolicy=z-derivate)
TwinBooster
Booster function for rapid heating
Flexible power: the induction power can be individually distributed or focused on just one cooking zone.
![Ideal for large pans](https://media.miele.com/images/2000015/200001545/20000154571.png?imWidth=442&impolicy=z-crop&x=0&y=0&w=5119&h=3839)
Exclusive to Miele
PowerFlex
Ideal for large pans
Unbeatably fast and versatile: the booster output of up to 7.3 kW.
![Smart control](https://media.miele.com/images/2000015/200001573/20000157366.png?imwidth=442&impolicy=z-derivate)
Con@ctivity
Smart control
Innovative convenience: the rangehood reacts automatically to settings on the cooktop.
![Added convenience](https://media.miele.com/images/2000015/200001559/20000155915.png?imwidth=442&impolicy=z-derivate)
Convenient additional functions
Added convenience
Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.
![Set down your pan and get cooking](https://media.miele.com/images/2000015/200001574/20000157407.png?imwidth=442&impolicy=z-derivate)
Permanent pan detection
Set down your pan and get cooking
Automatic control element activation: when the cooktop is turned on, pans which are already in place are detected.
Specification
- No.
- 4
- Type
- PowerFlex cooking zone
- Size in mm
- Ø 150 – 230
- Max. rating in W
- 2100
- Max. Booster power rating in W
- 3000
- Max. TwinBooster power rating in W
- 3650
- Dimensions in mm (width)
- 916
- Dimensions in mm (height)
- 51
- Casing height incl. connection box in mm
- 51
- Dimensions in mm (depth)
- 408

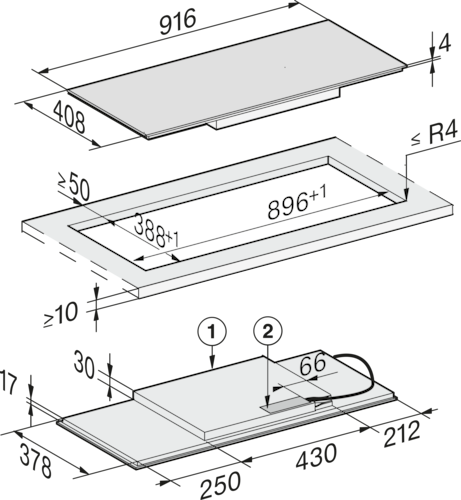

- Cutout dimensions in mm (width) with surface-mounted installation
- 896
- Cutout dimensions in mm (depth) with surface-mounted installation
- 388

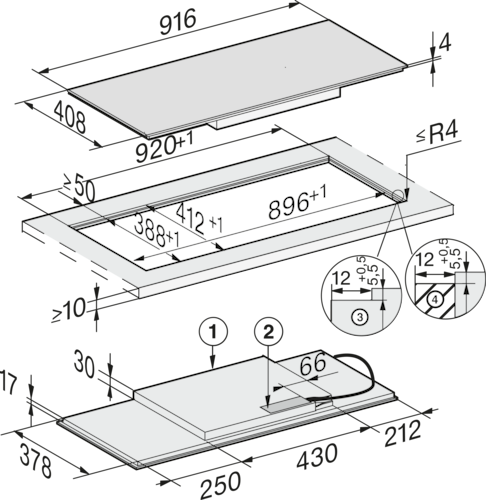

- Internal cutout dimensions in mm (width) with flush installation
- 896
- Internal cutout dimensions in mm (depth) with flush installation
- 388
- External cutout dimensions in mm (width) with flush installation
- 920
- External cutout dimensions in mm (depth) with flush installation
- 412
- Weight in kg
- 12
- Total rated load in kW
- 7.3
- Voltage in V
- 230
- Frequency in Hz
- 50-60
- Length of supply lead in m
- 1.4
- Position
- right
- Type
- PowerFlex bridge
- Size in mm
- 230x390
- Max. rating in W
- 3400
- Max. Booster power rating in W
- 4800
- Max. TwinBooster power rating in W
- 7300
- Position
- Left
- Type
- PowerFlex bridge
- Size in mm
- 230x390
- Max. rating in W
- 3400
- Max. Booster power rating in W
- 4800
- Max. TwinBooster power rating in W
- 7300
- Networking with Miele@home
- Operation via sensor controls
- Smart Select
- Display colour
- Yellow
- Mains cable
- Independent of cooker
- Heating type
- Induction
- Number of cooking zones
- 4
- Number of cooking areas
- 2
- Maximum number of pans
- 4
