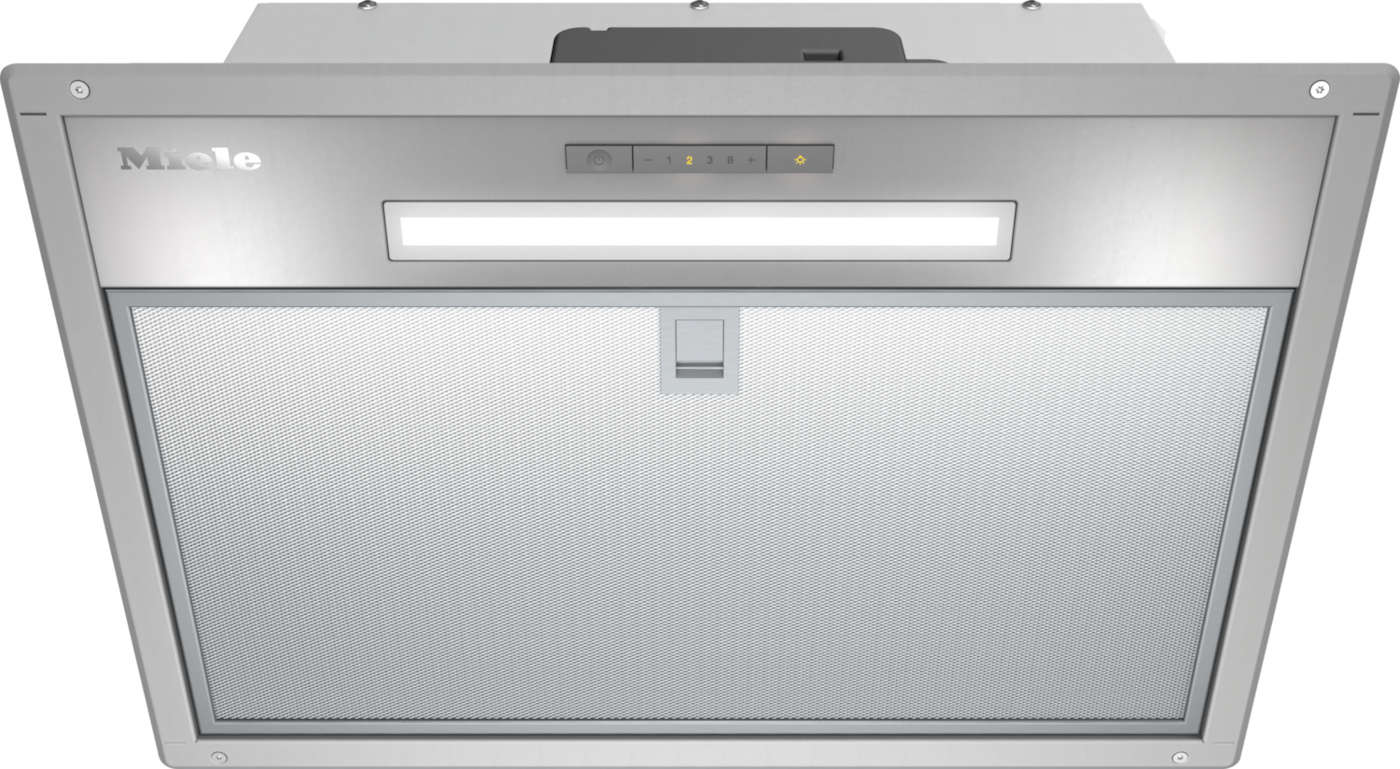

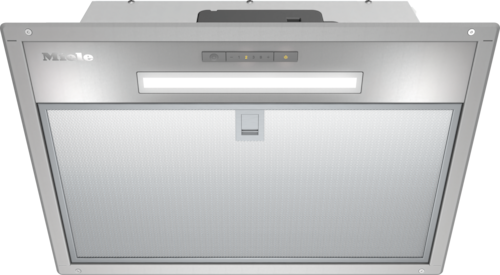

DAE 1535
Extractor unit with EasySwitch controls for convenient operation
- Customised kitchen design – fully integrated in 532 mm width
- Powerful – 400 m3/h at the highest level

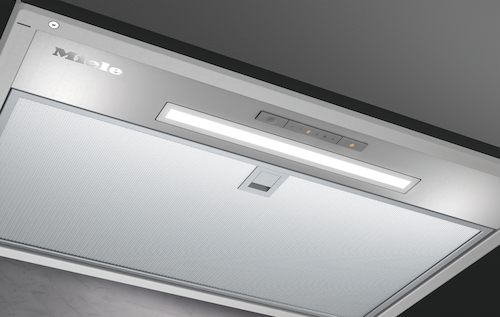

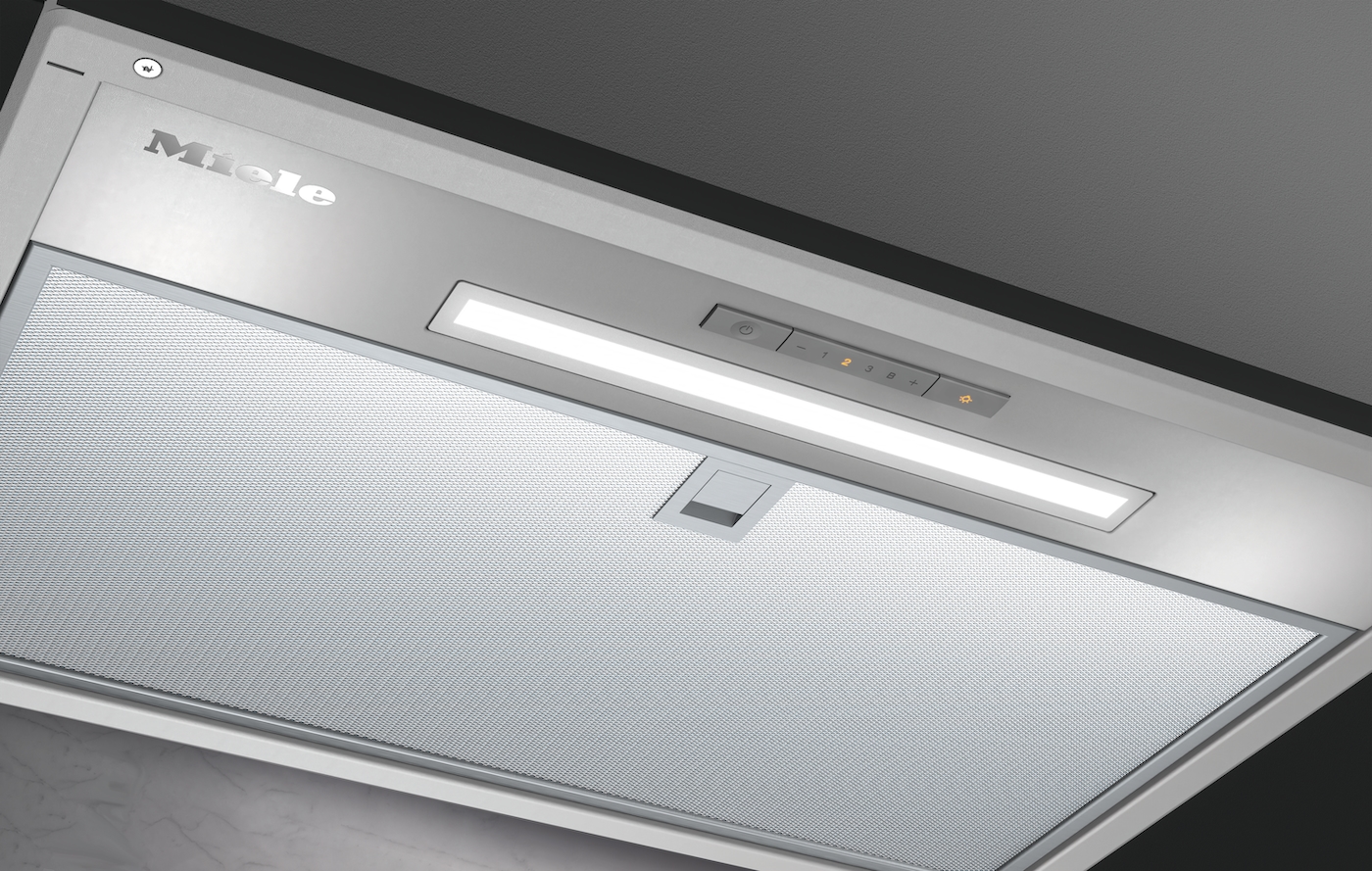

- LED strip for uniform lighting
- Efficient filtration – 10-layer stainless-steel grease filter
- Safe and easy to clean – Miele CleanCover
Active Promotions
Description
12760970
- Customised kitchen design – fully integrated in 532 mm width
- Powerful – 400 m3/h at the highest level
- LED strip for uniform lighting
- Efficient filtration – 10-layer stainless-steel grease filter
- Safe and easy to clean – Miele CleanCover
Benefits
Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Miele rangehoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your cooktop from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discoloration occurs from being cleaned in the dishwasher and they retain their stunning appearance.
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Miele CleanCover
Convenience and safety in detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with electrical components and the motor. Miele attention to detail - for your convenience and safety.
Safety switch-off
Always on the safe side
Sensible, even in case of operating errors: the rangehood switches off automatically after 10 hours.
Safety switch-off
Always on the safe side
The rangehood will switch off automatically after 10 hours. This ensures maximum safety even in the event of operating errors.
Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Miele rangehoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your cooktop from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discoloration occurs from being cleaned in the dishwasher and they retain their stunning appearance.
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Miele CleanCover
Convenience and safety in detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with electrical components and the motor. Miele attention to detail - for your convenience and safety.
Specification
- Dual-action blower
- Number of fans
- 1
- Fan power (m³/h)
- 650
- Air throughput in Level 1 (m³/h) according to EN 61591
- 240
- Air throughput in Level 2 (m³/h) according to EN 61591
- 315
- Air throughput in Level 3 (m³/h) according to EN 61591
- 400
- Air throughput with Booster setting 1 (m³/h) according to EN 61591
- 625
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
- 55
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
- 60
- Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3
- 65
- Sound power with Booster setting 1 (dB(A) re 1 pW) acc. to EN 60704-3
- 74
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
- 41
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
- 46
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
- 51
- Sound pressure with Booster setting 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
- 60
- Non-return flap
- Type of air guide
- Can be retrofitted
- Recirculation conversion kit (order separately)
- DUU 150,DUU 151
- Active charcoal filter (order separately)
- DKF 32-P
- Colour
- Stainless steel
- Number of dishwasher-safe stainless steel grease filters (10-ply)
- 1
- Canopy width in in. (mm)
- 532
- Canopy height in in. (mm)
- 50
- Depth of hood canopy in in. (mm)
- 372
- Net weight in kg
- 9
- Length of supply lead in m
- 1.5
- Standard plug fitted
- Total rated load in kW
- 0.248
- Voltage in V
- 230
- Fuse rating in A
- 10
- Frequency in Hz
- 50
- Number of phases
- 1
- Number x W
- 1 x 3,2 W
- Light intensity in Lx
- 360 lx
- Colour temperature in K
- 3500 Kelvin
- Safety shut-off
- Electronic controls
- Touch-on-glass controls
- Power levels (number without Booster level)
- 3
- Booster settings
- 1

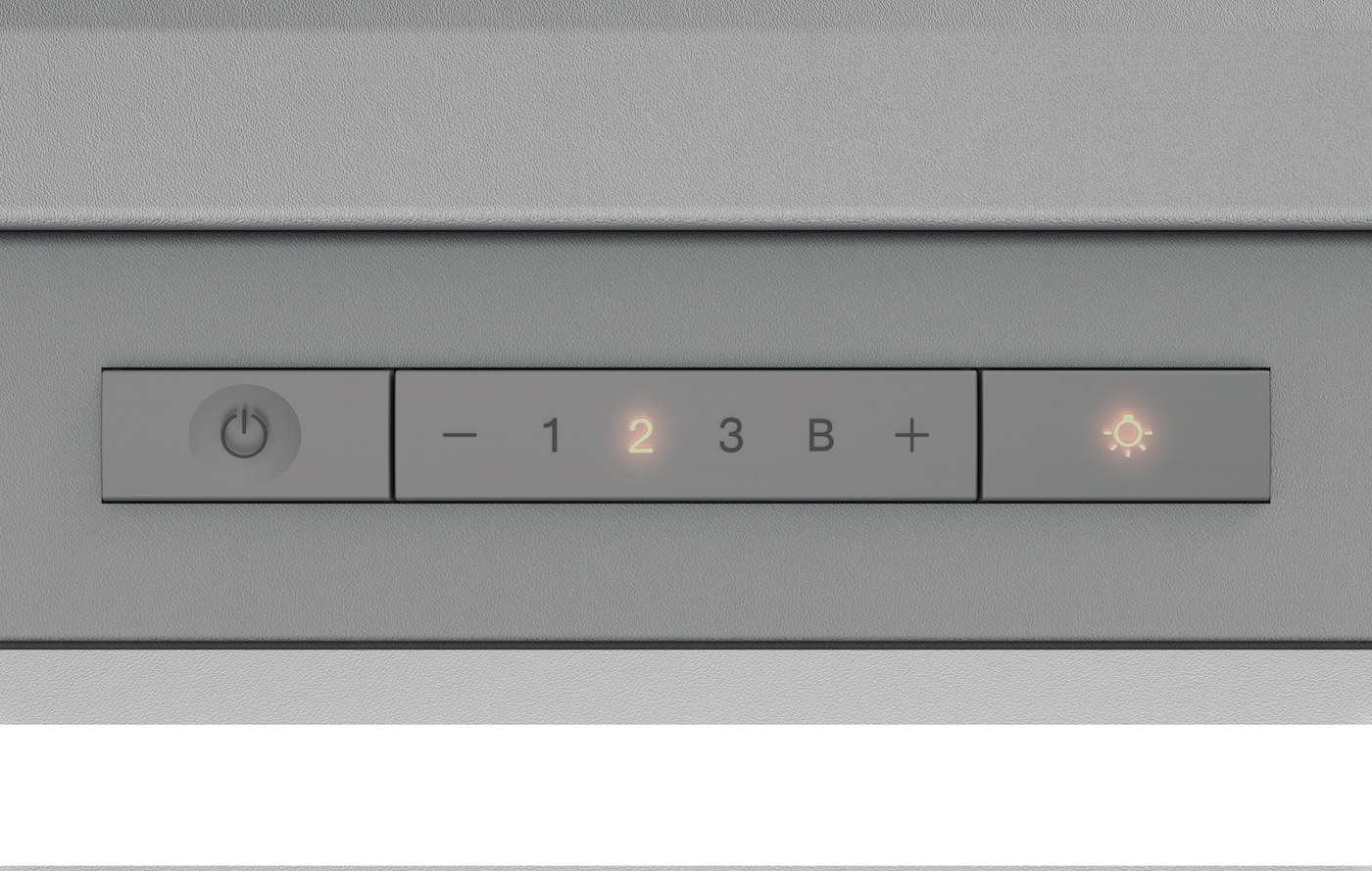

- Controls
- EasySwitch
- Extraction ducting connection at top
- Diameter of extraction ducting connection in mm
- 150
- Air throughput in Level 1 (m³/h) according to EN 61591
- 250
- Air throughput in Level 2 (m³/h) according to EN 61591
- 320
- Air throughput in Level 3 (m³/h) according to EN 61591
- 400
- Air throughput with Booster setting 1 (m³/h) according to EN 61591
- 640
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
- 52
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
- 56
- Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3
- 60
- Sound power with Booster setting 1 (dB(A) re 1 pW) acc. to EN 60704-3
- 69
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
- 38
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
- 42
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
- 46
- Sound pressure with Booster setting 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
- 55
- Integrated extractor
