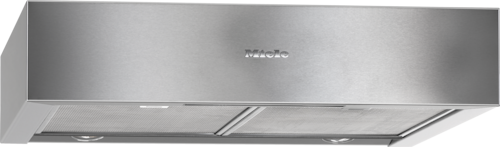

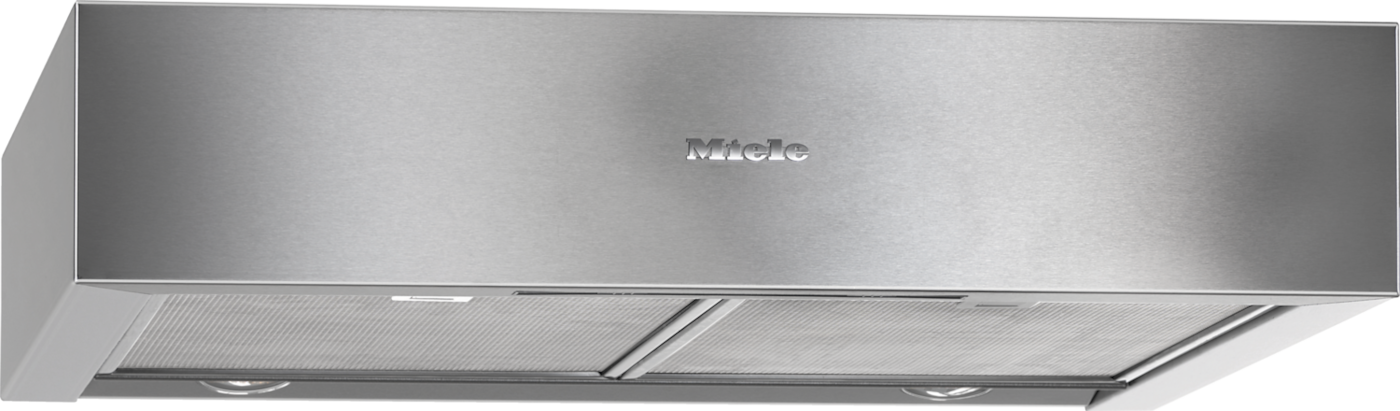

DA 1260 60cm Wide Wall-mounted Rangehood

Built-under rangehood with energy-efficient LED lighting and sliding switch for simple operation.
  • Puristic design – space-saving solution 598 mm wide
  • Powerful – 545 m3/h in Booster setting
  • Efficient filtration – 10-layer stainless-steel grease filter
  • Safe and easy to clean – Miele CleanCover
  • Suitable for every home – for extraction or recirculation
See Full Description
$ 1,169.10
Was $ 1,299.00
In stock
DA 1260 60cm Wide Wall-mounted Rangehood
Description
10539520
  • Puristic design – space-saving solution 598 mm wide
  • Powerful – 545 m3/h in Booster setting
  • Efficient filtration – 10-layer stainless-steel grease filter
  • Safe and easy to clean – Miele CleanCover
  • Suitable for every home – for extraction or recirculation
Benefits
Convenience and safety in detail
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Specification
Non-return flap
Deflector for recirculation
Built-under rangehood
Colour
Stainless steel
Type of air guide
Can be retrofitted
Active charcoal filter (order separately)
DKF 18-P
Mechanical controls
Slide switch
Power levels (number without Booster level)
3
Easy-to-clean canopy interior – CleanCover

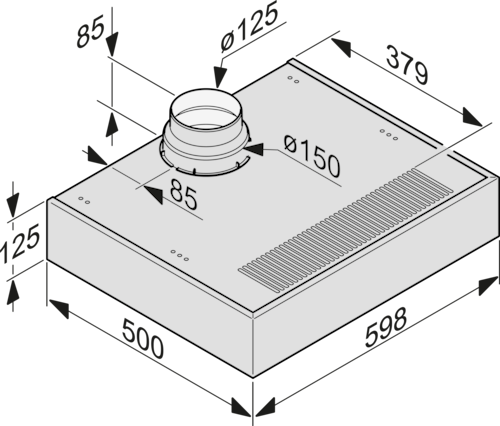

Canopy width in in. (mm)
598
Canopy height in in. (mm)
125
Depth of hood canopy in in. (mm)
500
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm
650
Net weight in kg
11.2
Length of supply lead in m
1.5
Standard plug fitted
Total rated load in kW
0.236
Voltage in V
230
Fuse rating in A
10
Frequency in Hz
50
Number of phases
1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm
150
Fitting template
Single-action blower
AC motor
Air throughput in Level 1 (m³/h) according to EN 61591
275
Air throughput in Level 2 (m³/h) according to EN 61591
315
Air throughput in Level 3 (m³/h) according to EN 61591
355
Air throughput in Booster level (m³/h) according to EN 61591
545
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
57
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
60
Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3
64
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3
74
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
43
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
47
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
50
Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13
60
Air throughput in Level 1 (m³/h) according to EN 61591
165
Air throughput in Level 2 (m³/h) according to EN 61591
180
Air throughput in Level 3 (m³/h) according to EN 61591
195
Air throughput in Booster level (m³/h) according to EN 61591
220
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
71
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
72
Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3
73
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3
75
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
57
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
58
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
59
Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13
62
Number of dishwasher-safe stainless steel grease filters (10-ply)
2
LED
Number x W
2 x 3 W
Light intensity in Lx
330 lx
Colour temperature in K
3000 Kelvin
Easy-to-clean canopy interior – CleanCover
Reviews
1.00| 1 Review

0 out of 1 (0%) reviewers recommend this product

Downloads
Find all attachments below
Operating instructions accessories
Guarantee booklet
