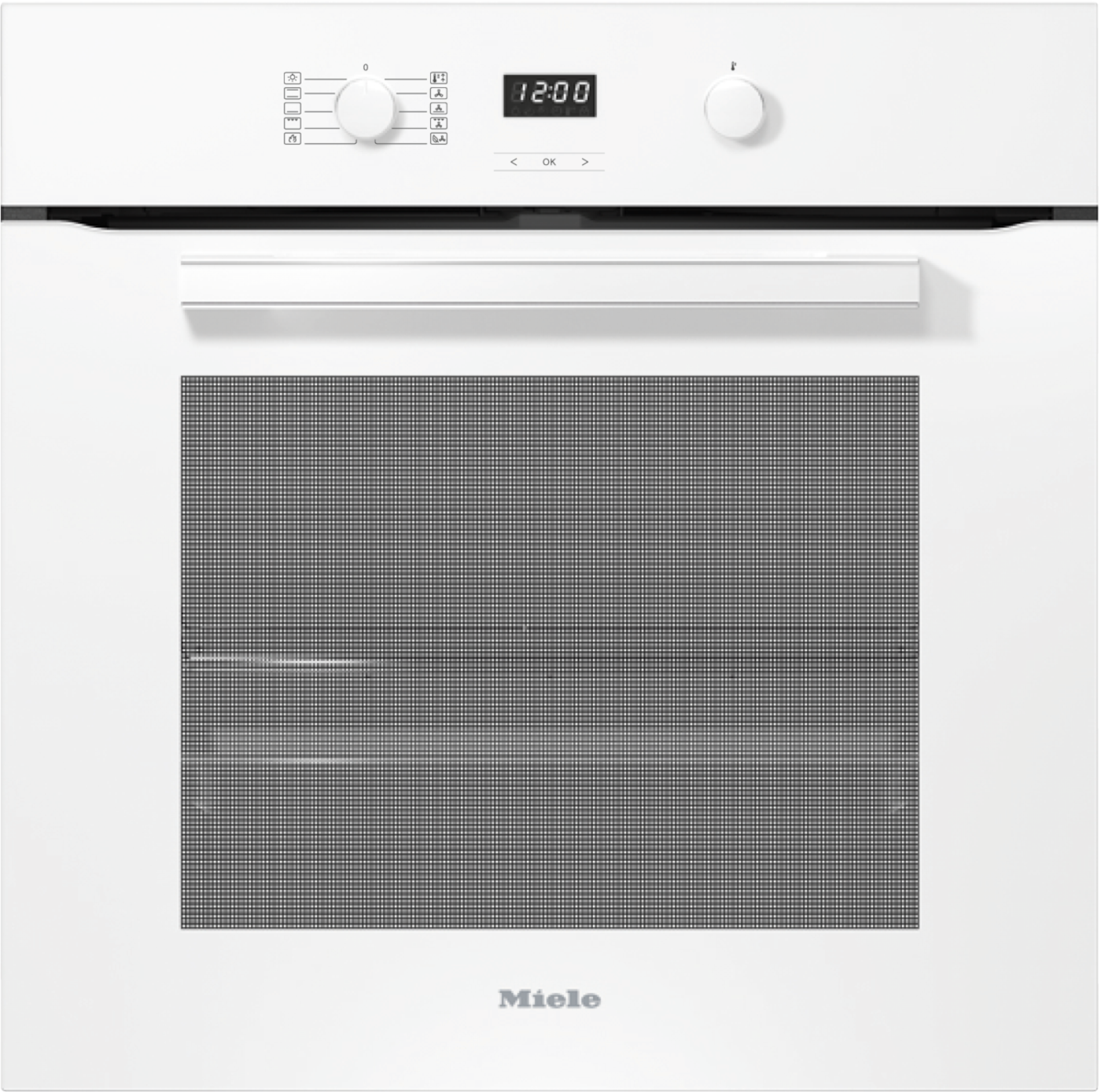

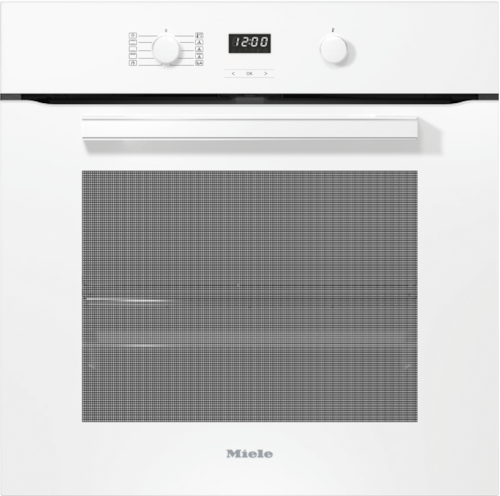

H 2860 BP Ovens

seamless design with FlexiClip telescopic runners and pyrolytic cleaning.

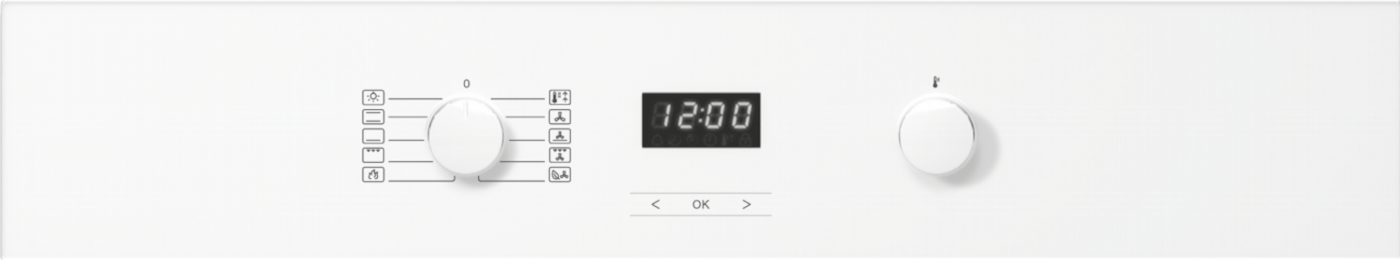

  • 7-segment display with retractable controls – EasyControl
  • Minimal cleaning effort – Pyrolytic cleaning
  • Lots of room and flexibility – 76 l cooking capacity on 5 levels
  • Easy handling – FlexiClip telescopic runners
  • Protects against burns – touch-cool fronts
See Full Description
Was $ 3,299.00$ 1,979.00
You save $ 1,320.00
Low in stock. Click ADD TO CART
to check stock availability
You save $ 1,320.00
H 2860 BP Ovens
Description
11127770
  • 7-segment display with retractable controls – EasyControl
  • Minimal cleaning effort – Pyrolytic cleaning
  • Lots of room and flexibility – 76 l cooking capacity on 5 levels
  • Easy handling – FlexiClip telescopic runners
  • Protects against burns – touch-cool fronts
Benefits
Product image
Touch-cool front door
The only thing that gets hot is the food
Protection against burns: the appliance remains relatively cool – even on the outside of the door.
Product image
Safety functions
Maximum safety in any situation
Safety guaranteed: safety lock and auto switch-off provide reliable protection.
Product image
SoftOpen and SoftClose
Gentle door movement
Refined and elegant: the door opens and closes with a gentle movement from beginning to end.
Product image
Timer functions
Leave time management to your oven
Always on time: programme the start time, finish time and duration of the cooking process or the minute minder.
Product image
Oven interior volume & shelf levels
Optimised use of the oven interior
Wonderful use of space: the carefully thought out oven interior configuration ensures effective use.
Pyrolytic cleaning
Effortless cleaning
The oven compartment cleans itself automatically at high temperatures.
Specification
Display
EasyControl
SoftOpen
SoftClose
Timer functions
Time of day display
Minute minder
Programmable end of cooking duration
Programmable cooking duration
Actual temperature display
Target temperature display
Buzzer when desired temperature is reached
Recommended temperature
Individual settings
Pyrolytic self-cleaning
Hinged grill element
CleanGlass door
Appliance cooling system and touch-cool front
Safety switch-off
System lock
Door lock during pyrolytic cleaning
Oven interior volume in l
76
No. of shelf levels
5
Appliance dimensions (W x H x D) in mm
595 x 596 x 568
Numbered shelf levels
Oven light
1 halogen spot
Niche width min. in mm
560
Niche dimensions (W x H x D) in mm
560-568 x 590-595 x 550
Niche width max. in mm
568
Niche height min. in mm
590
Niche height max. in mm
595
Niche depth in mm
550
Weight in kg
47
Temperatures in °C
30–280
Total rated load in kW
3.6
Voltage in V
220-240
Frequency in Hz
50
Number of phases
1
Fuse rating in A
16
Length of supply lead in m
1.5
Replacing lamps
Customer
Baking tray with PerfectClean HBB 71
1
Universal tray with PerfectClean HUBB 71
1
Baking and roasting rack without PerfectClean
2
FlexiClip telescopic runners HFC 70-C (pair)
1
Removable shelf runners (pair)
1
Grilling and roasting insert with PerfectClean
1
Eco Fan Heat
Grill operating modes
Grill
Fan Plus
Intensive Bake
Conventional Heat
Bottom Heat
Fan Grill
Built-in oven
VitroLine
Appliance colour
Brilliant white
Retractable rotary controls
Rapid Heat-up
Downloads
Find all attachments below
3D data DWG
3D data IFC
3D data FBX
Guarantee booklet
3D data RVT
3D data RFA
Installation Drawings
Find all installation drawings below

22 mm - glass, 23,3 mm - metal

Side view Kombi BM XL, installation drawings

22 mm - glass, 23,3 mm - metal

Installation Kombi BM XL, installation drawings

H7000 handle, glass, installation drawings

1) 400 mm, 2) 360 mm, 3) 47 mm, 4) 27 mm, 5) 32.5 mm

Installation H7000 BM XL, installation drawings

Installation H7000 BM XL, installation drawings

built-in H7000 XL, installation drawing

side view H7000 XL, installation drawings

22 mm - glass, 23,3 mm - metal

Installation H7000 XL underframe, installation drawings

If the oven is to be installed under a hob, follow the instructions for installing the hob and the height of the hob.

side view H7000 XL, installation drawings, GB, AU

22 mm - glass, 23.3 mm - metal
